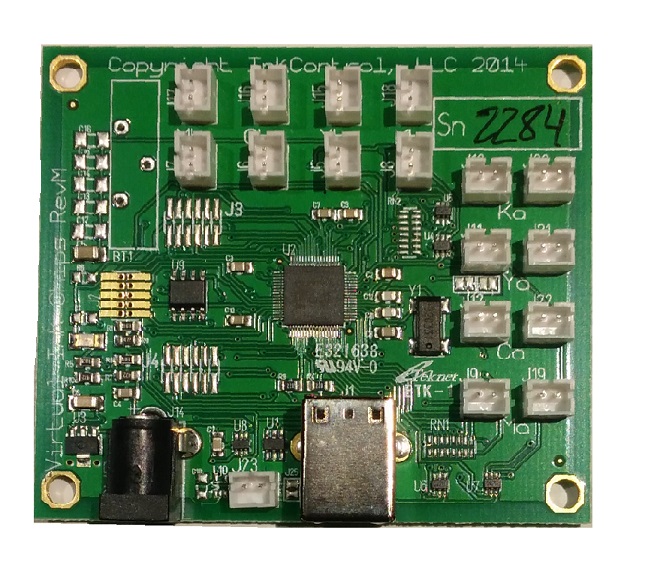

The InkControl Ink Chip Emulator Board
The 16 white connectors circled in red are the
same type found on the back of your printer. All you need to
do is disconnect the cables from the back of the cartridge
brackets and connect them to these connectors on the emulator
board.
This
7.5 x 6.5cm board is all you need to be able to use
alternative source inks and start saving money!
The connector circled in purple is for alternative
emulator power using a 6 to 9V DC source, i.e. a 9V battery or
an equivalent power supply. This alternative power source
allows you to run the board without the USB cable attached.
The connections circled in green are for alternative
emulator power using a 5V DC source. This alternative power
source allows you to run the board without the USB cable
attached.
The connector circled in blue is a standard USB
connector and allows for the connection to the PC.
Optional Anodized Aluminum Enclosure for
Emulator Board
Back View of Enclosure
Front View of Enclosure
Board in enclosure without side/top covers
